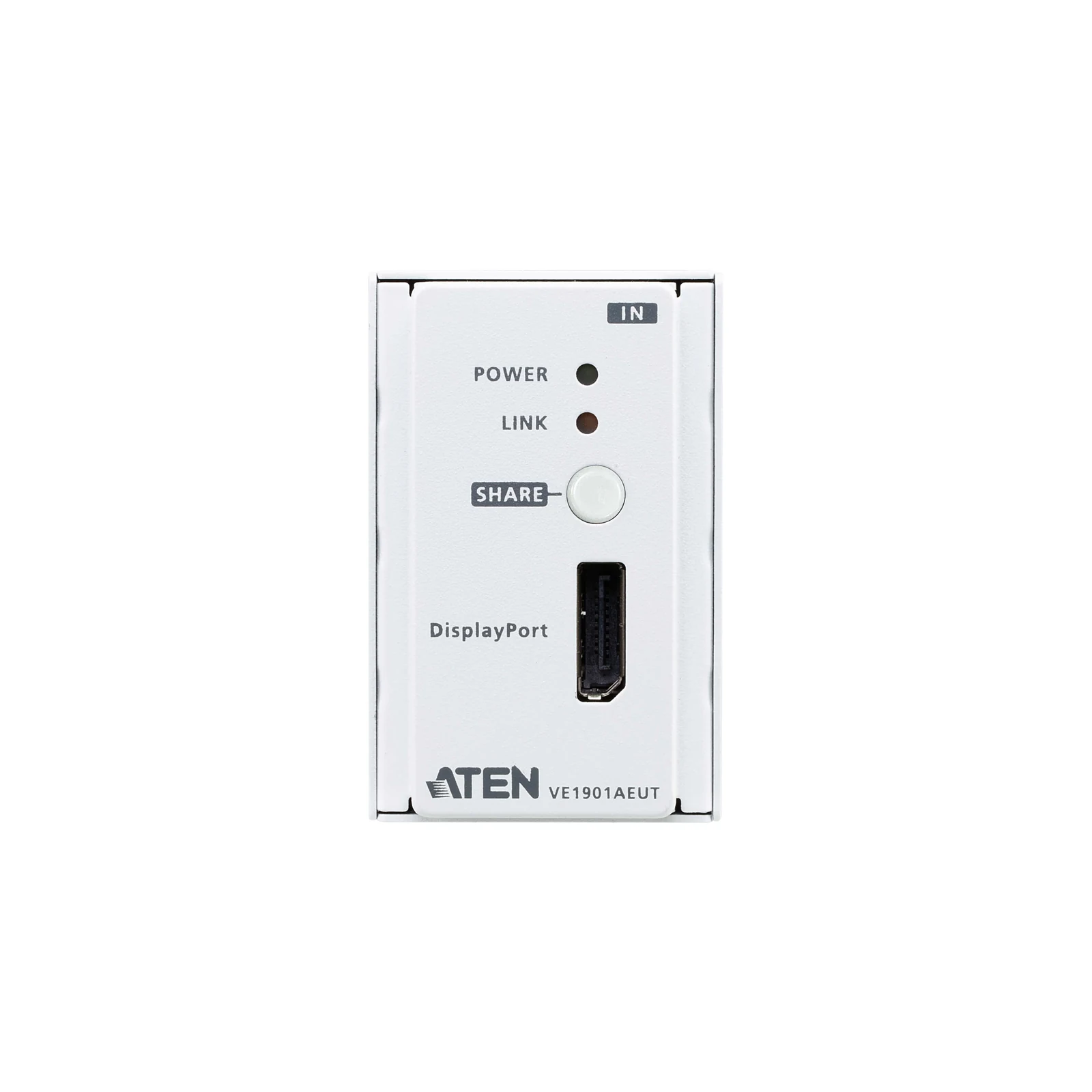

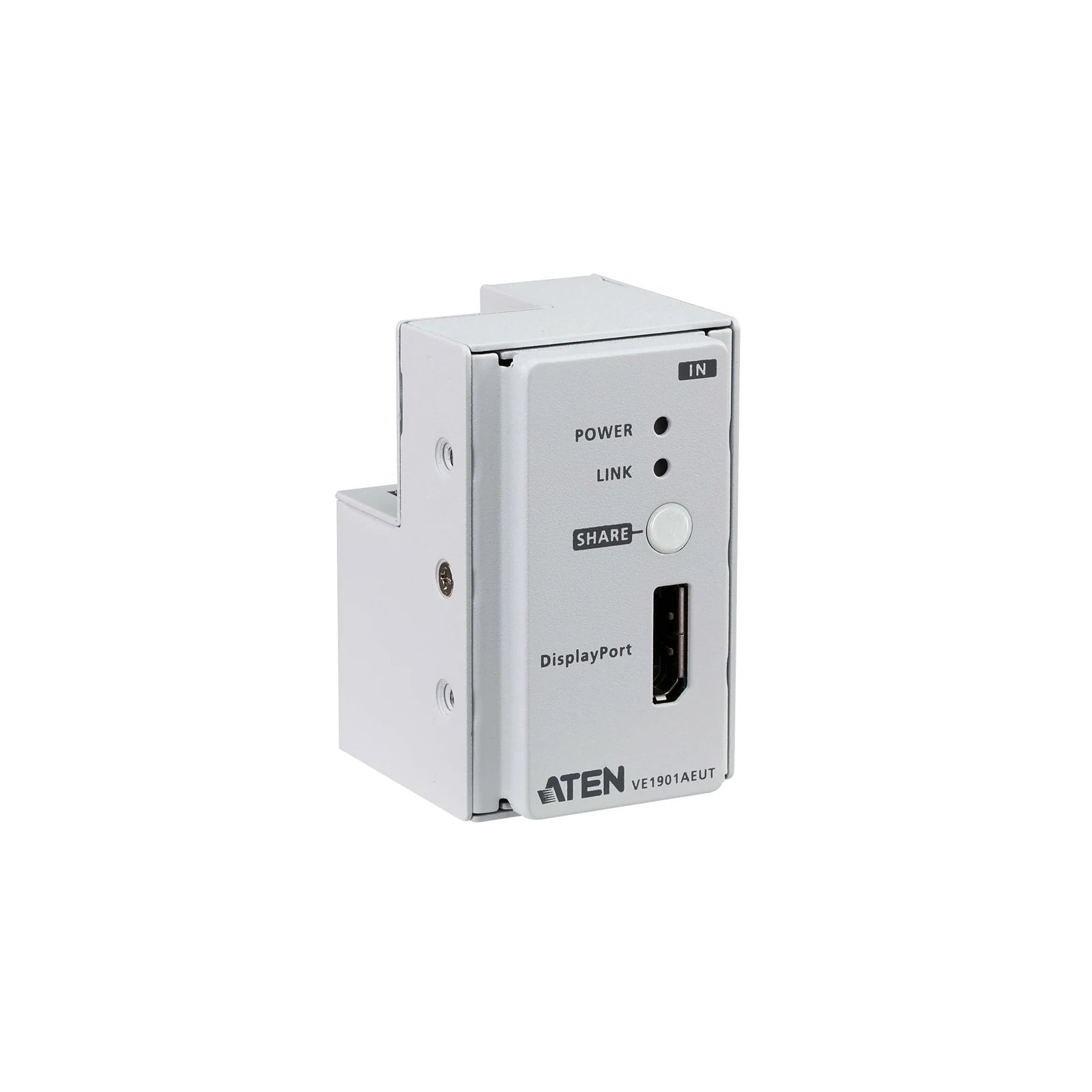

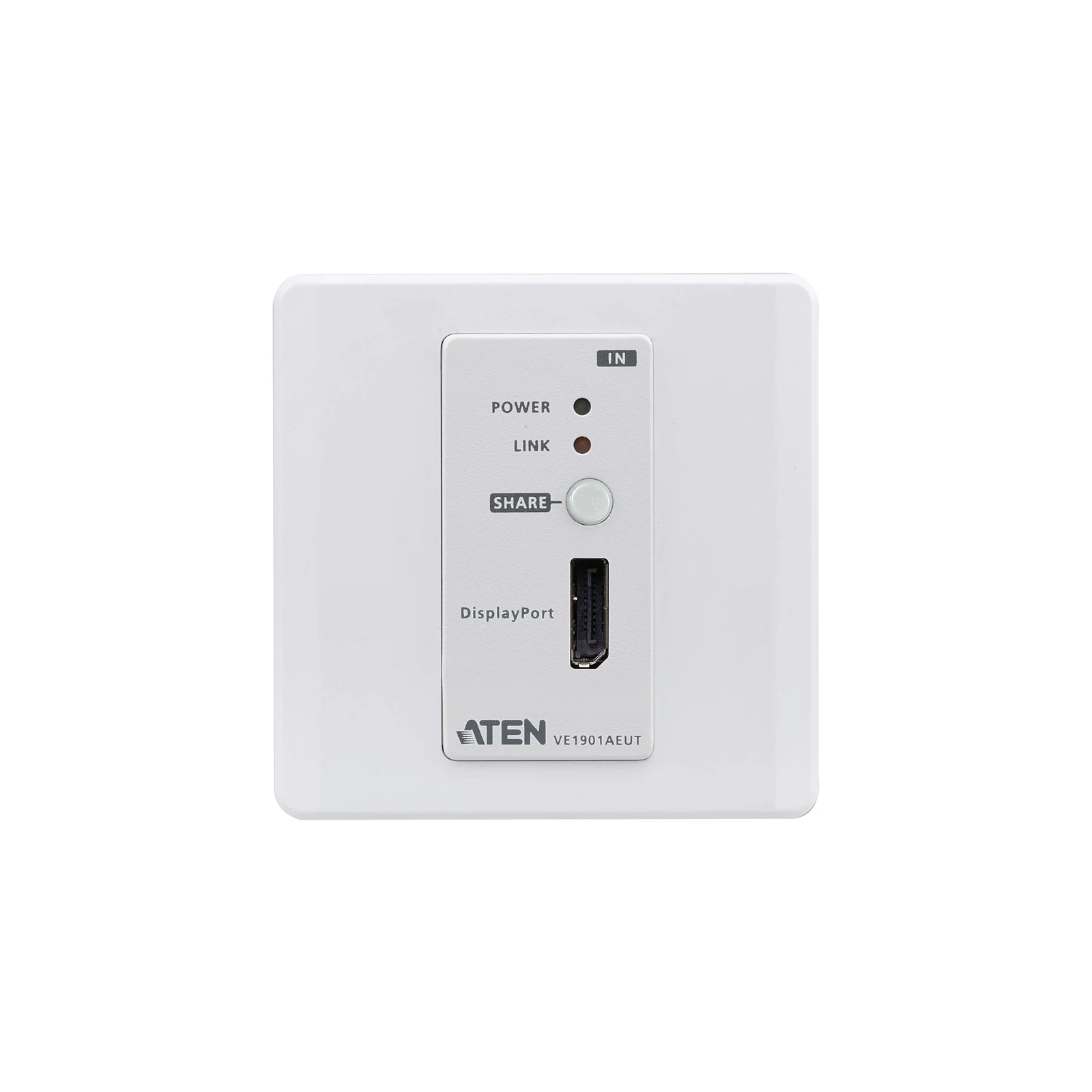

ATEN VE1901AEUT DisplayPort HDBaseT-Lite Transmitter with EU Wall Plate / PoH
Procurement readiness
RFQ ReadyThe catalog record is approved for a standard quote request; current commercial terms still require RFQ review.
DisplayPort HDBaseT-Lite transmitter with an EU wall plate and Power over HDBaseT support.
Quick Facts
- Video input
- DisplayPort
- Extension
- HDBaseT-Lite
- Installation
- EU wall plate
- Power
- Power over HDBaseT
Highlights
- Extends DisplayPort video over an HDBaseT-Lite link.
- Wall-plate form factor supports integrated room installations.
Source-backed product identity
RFQ before payment
Order terms confirmed in quotation
Exact availability, condition, warranty, lead time and shipping scope are confirmed in the quotation.
Technical Specifications
Video & Extension
Published DisplayPort input and HDBaseT Lite extension capability.
Video & Extension
Published DisplayPort input and HDBaseT Lite extension capability.
| Unit type | DisplayPort HDBaseT Lite transmitter |
|---|---|
| Video input | 1 x DisplayPort female |
| Maximum data rate | 10.2 Gbps |
| Maximum pixel clock | 297 MHz |
| Maximum resolution | 4K at 30 Hz |
Cable Reach & Control
Published point-to-point cable distances and control interfaces.
Cable Reach & Control
Published point-to-point cable distances and control interfaces.
| 4K extension distance | 35 m over Cat 5e/6; 40 m over Cat 6a |
|---|---|
| 1080p extension distance | 60 m over Cat 5e/6; 70 m over Cat 6a |

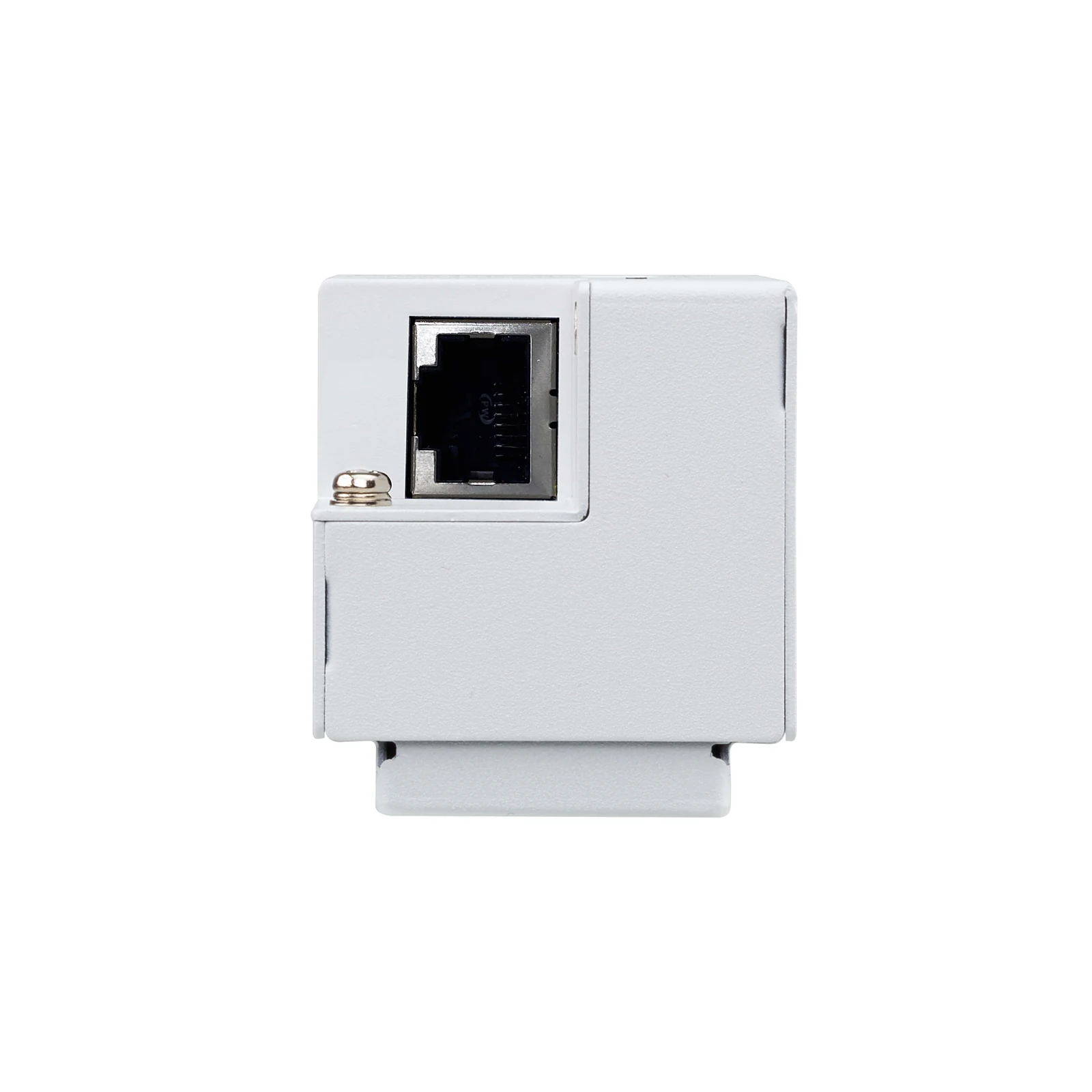

| HDBaseT link | 1 x RJ-45 |

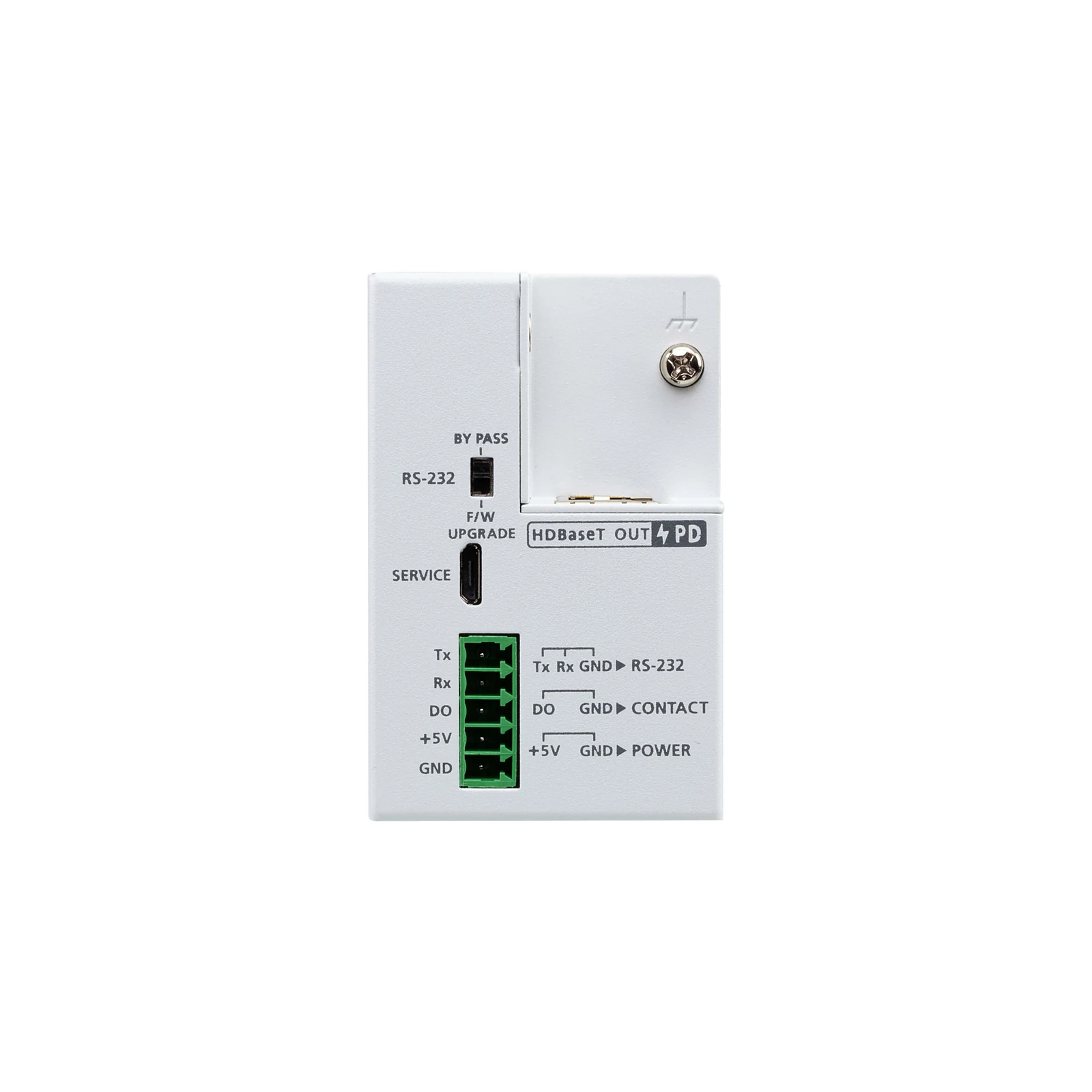

| Serial control | RS-232 terminal block |
| Contact control | Contact-out terminal block |
Power & Environment
Published power, operating range and physical characteristics.
Power & Environment
Published power, operating range and physical characteristics.
| Power options | PoH or DC 5V |
|---|---|
| Power consumption | 2.97W at DC; 3.71W with PoH |
| Operating temperature | 0 to 40 degrees C |
| Chassis dimensions | 6.86 x 4.44 x 5.00 cm |
| Weight | 0.20 kg |
Procurement Identity
Use the base model and listed identifiers when building a multi-model RFQ. The selected PID, destination, configuration and commercial terms are confirmed before a quote is issued.
- Orderable part number
- VE1901AEUT
- Orderable PID options
- VE1901AEUT
- Quote inputs
- PID or base model, quantity, destination and required configuration
Technical Documents
Gallery
FAQ
Can ATEN VE1901AEUT be quoted for an enterprise project?
Yes.
What should be confirmed before ordering ATEN VE1901AEUT?
Confirm exact interfaces, compatibility, lifecycle, warranty, lead time and shipping requirements before payment confirmation.
RFQ
Need VE1901AEUT for a project?
Share your configuration, quantity and delivery destination to receive a tailored quote for VE1901AEUT.
Brand
ATEN
Model
VE1901AEUT
Product family
Video Extenders
